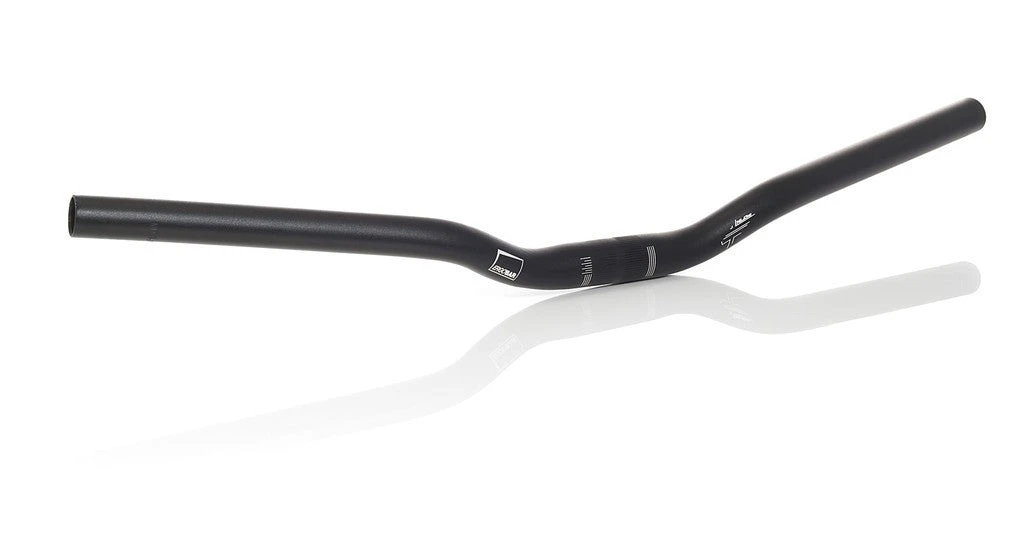

XLC Ergo Riser Handlebar HB-C09

Handlebars are an important contact point for bike riders. If they’re the wrong size or the upsweep too high it can lead to uncomfortable riding and put strain on your hands and wrists. XLC have ergonomically designed the Comp Ergo-Bar HB-C09 to alleviate any issues you may have when riding so you can ride more comfortably and for longer. XLC have used double-butted aluminium to construct the HB-C09. Double butting strengthens the bars without compromising weight.



The weight of the HB-C09 bars is 198 grams. The bars have a height of 30mm and width of 600mm. If you’re putting too much pressure on your wrists and hands when you ride, you may need a more ergonomic handlebar.

The HB-C09 use an upsweep of 23 degrees and a back sweep of 15 degrees to help alleviate any pressure you may have when riding. Raising the bars also means it is easier to lift the bike over any obstacles on your ride.



• Sturdy riser bar
• Ergonomic position of handlebar
• Width: 600mm
• Stem Clamp Dimention: ⌀25.4mm / ⌀31.8mm
• Upsweep: 23°
• Back sweep: 15°
• Rise: 30mm
• Weight: 198g

Field Of Application: MTB
Material: Aluminium (Aluminium 6061, Butted)
