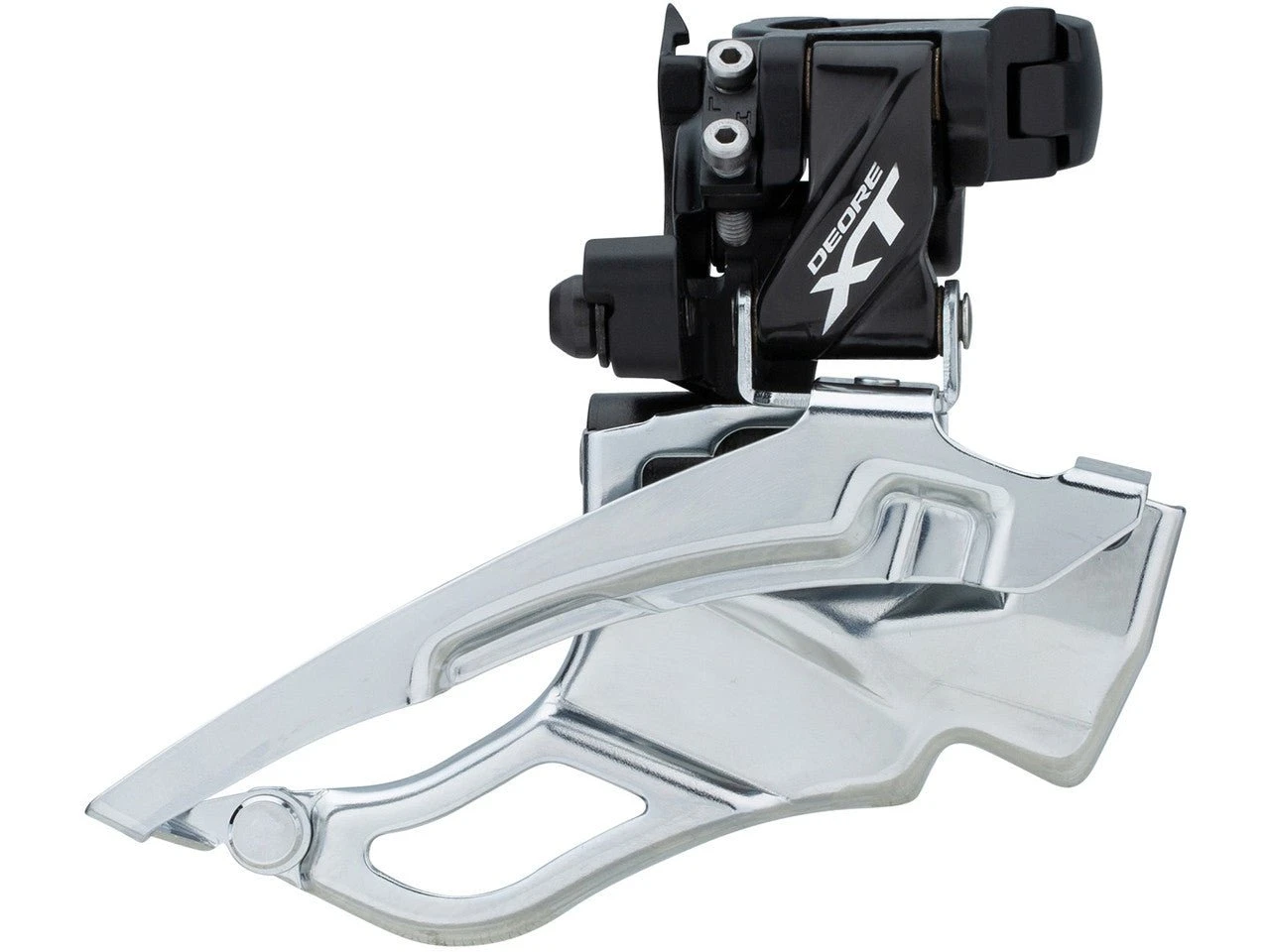

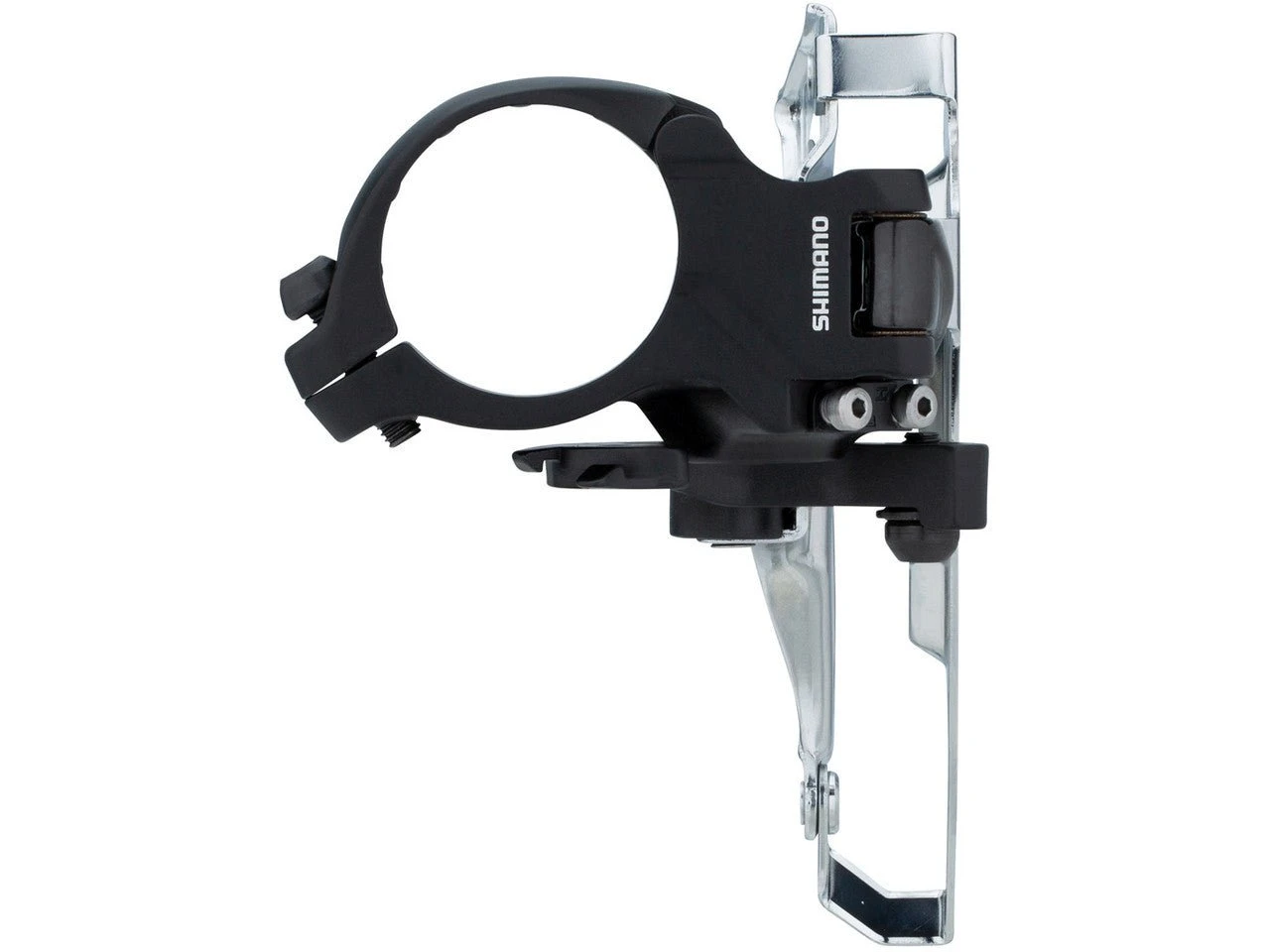

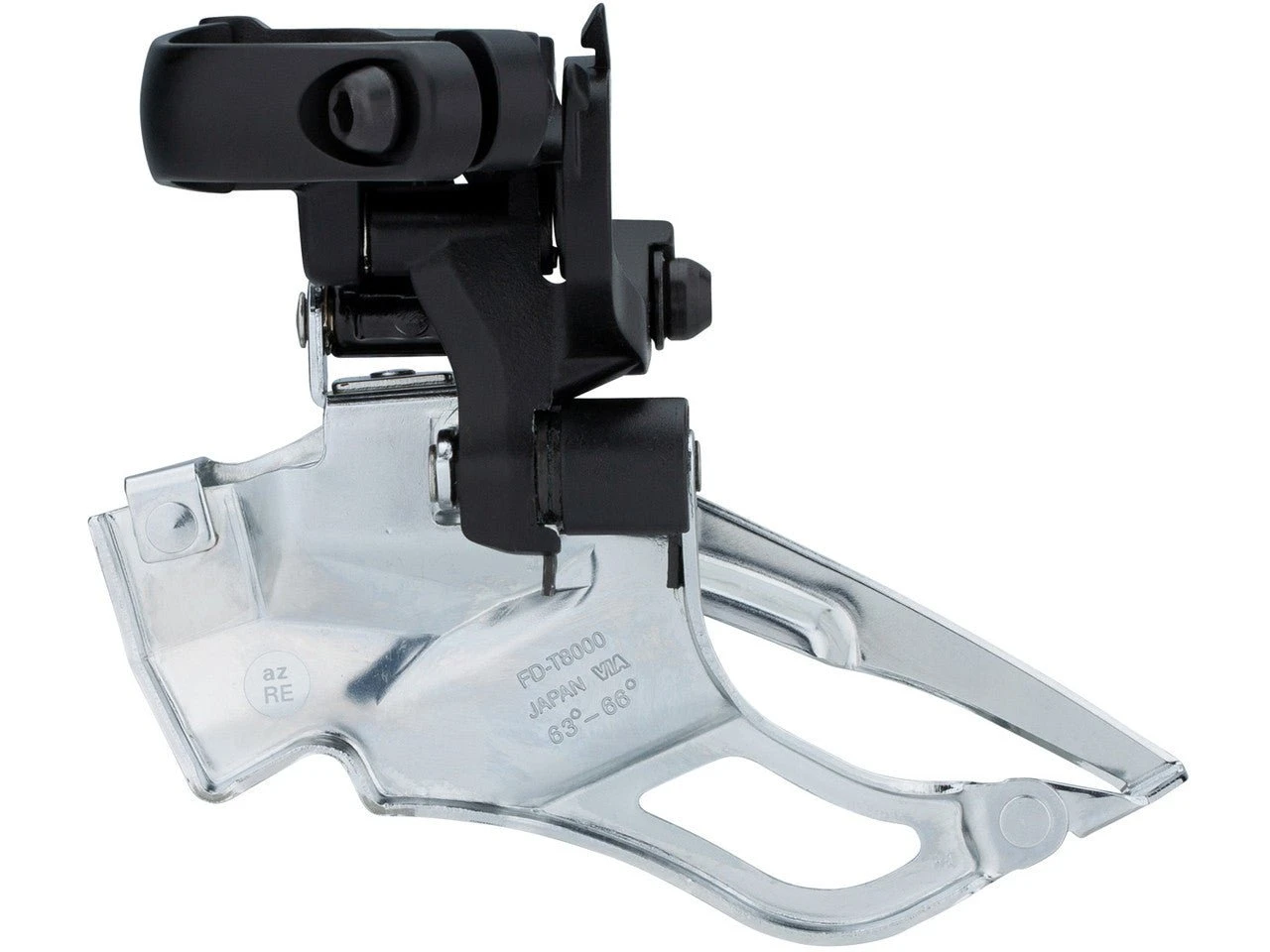

Shimano Deore XT FD-T8000 63-66° 10 Speed Front Derailleur

This Shimano XT FD-T8000 front derailleur can be used on bikes with 63° to 66° chainstays, which are more common on City & Touring bikes. As a 3x front derailleur for 10-speed drivetrains, it impresses with reliable shifting performance and smooth shifting operations. The FD-T8000 is fastened with a clamp; the cable can be guided from above or below (dual-pull).

Specifications:

Series: Deore XT T8000
Application: City & Touring
Gearing: 3x (combined w/ 10-speed)
Chainstay Angle: 63-66°
Chainline: 50 mm
Chainring Size (max.): 48-tooth
Capacity: 22-tooth
Difference Between Large & Middle Chainring: 12-tooth
Cable Routing: dual pull
Movement: down-swing, top-swing
Attachment: high clamp, low clamp
Clamp Diameter: 34.9 mm w/ adapter 31.8 mm / 28.6 mm
Compatibility: HG-X 10-speed chains

Technical Information:

Outer Body Material: steel (FD-T8000-L), aluminium (FD-T8000-H)
Inner Body Material: Aluminium
Cage Material: steel

Compatibility:

Touring 3×10-speed:
Shifter: SL-T8000, SL-T780, SL-M780, SL-T670, SL-M670, SL-T610, SL-M610, SL-M591, SL-T6000
Cranks: FC-T8000, FC-T780, FC-T781, FC-T671, FC-M610, FC-M670, FC-T611, FC-T6010, FC-T551, FC-T521
Chain: CN-M981, CN-M980, CN-HG95, CN-HG94, CN-HG75, CN-HG74, CN-HG54

Features:

– uniform shifting performance
– wide and robust adjustment range
– reliable shifting performance
– 2 joint bushings (FD-T8000-L) or 8 joint bushings (FD-T8000-H)
– painted parallelogram
– chrome-plated cage plates

Manufacturer Numbers:

high clamp / down-swing / dual-pull: I-FDT8000HX3
low clamp / top-swing / dual-pull: I-FDT8000LX3

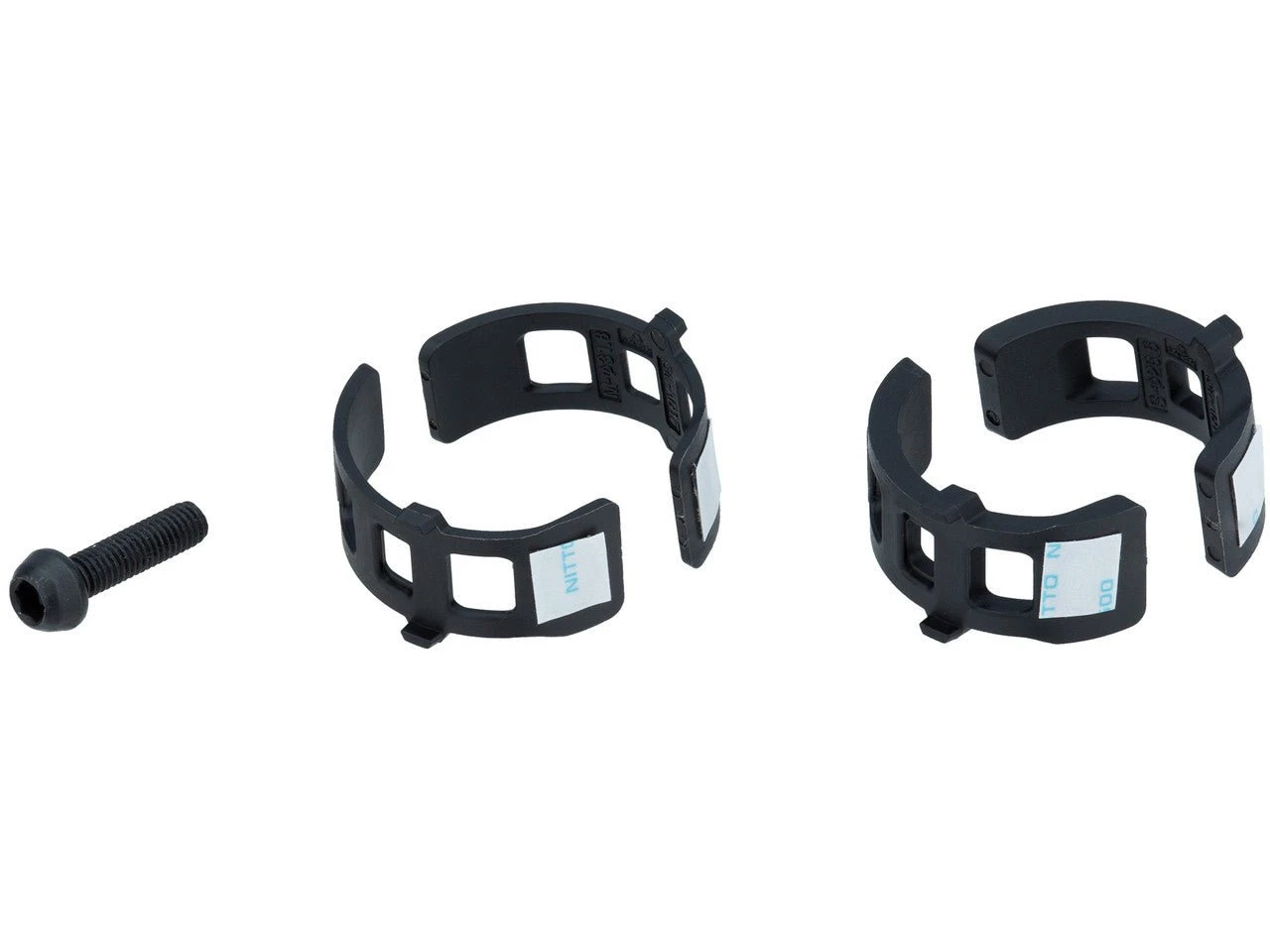

Contents:

– 1 x Shimano XT FD-T8000 front derailleur
– 1 x 28.6 mm adapter
– 1 x 31.8 mm adapter
