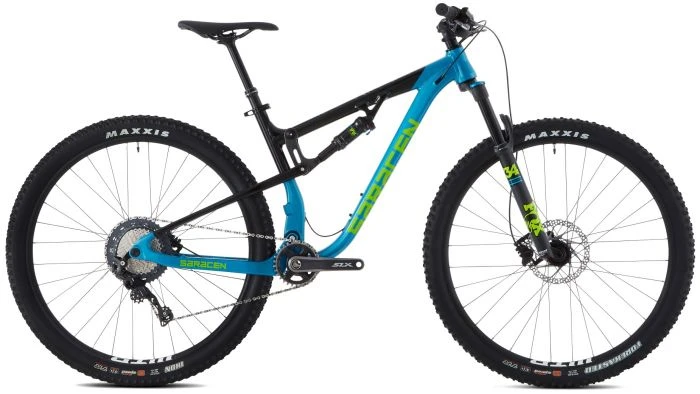

A FULL SUSPENSION 29’ER DESIGNED TO GO AS FAST AS YOU WANT AND LEAVE YOU WITH A BIG SMILE ON YOUR FACE!
With 29″ wheels, 100mm travel at the back and 120mm at the front, the Saracen Traverse is a seriously fast trail weapon. The Series 3 custom butted alloy front triangle give the bike a solid platform, and it has been matched to a Toray UD carbon swing-arm at the back. That swing-arm also uses ‘Flex Stay’ technology, which reduces weight by eliminating a rotational pivot and securing hardware. You’ll also notice that we have opted for a 142mm rear hub, offset to a boost chain-line which means We’ve been able to conceal the rear calliper inside the stays, keeping the bike nice and narrow at the back and offering plenty of heel clearance.
Frame – Series 3 custom butted and hydro-formed 6013 alloy front triangle, Mitsubishi UD carbon flex swing-arm. Tapered head-tube, signature TRL suspension design with internal cable routine. 12 x 148mm boodt dropout system.
Rear Shock – Fox Float DPS
Fork – Fox 34 Float Performance W/Grip 3 Pos Damper
Headset – Prestine PT-1806D-616
Shifters – Shimano SLX
Rear Mech – Shimano XT M8000 Shadow Plus
Chainset – Shimano SLX
Bottom Bracket – Shimano
Cassette – Shimano SLX
Rims – WTB
Hubs – Formula
Spokes – Double Butted Stainless Steel
Tyres – Maxxis Forekaster
Brakes – Shimano M500
Brake Levers – Shimano Deore
Handlebar – Saracen OS 6061 DB Alloy Riser, 760mm Wide, 25mm Rise, 5 Degree Up Bend, 9 Degree Back Bend
Grip Tape – Saracen Lock-On Grip
Stem – Saracen Custom
Saddle – Kore Connex
Chain – KMC X11L
